Handheld Blood Oxygen Animal Pulse Oximeter With High Precision Clip And 3.5 Inch LCD Display
Product Details
| Animal: | CAT, Horse, DOG | Properties: | Diagnosis & Injection |
|---|---|---|---|
| Product Name: | Veterinary Monitor | Application: | Animal Health Diagnosis |
| Material: | ABS | Usage: | Pet Disease Detection |
| Type: | Pet Products | Name: | Veterinary Instruments |
| Battery: | Lithium Battery With 4,400mAh | Parameter: | SpO2, PR, Optional ETCO2 |
| Color: | Gray | Warranty: | 1 Year |
| Highlight |
Handheld Animal Pulse Oximeter,Blood Oxygen Animal Pulse Oximeter,LCD Display pet pulse oximeter |
||
Product Description

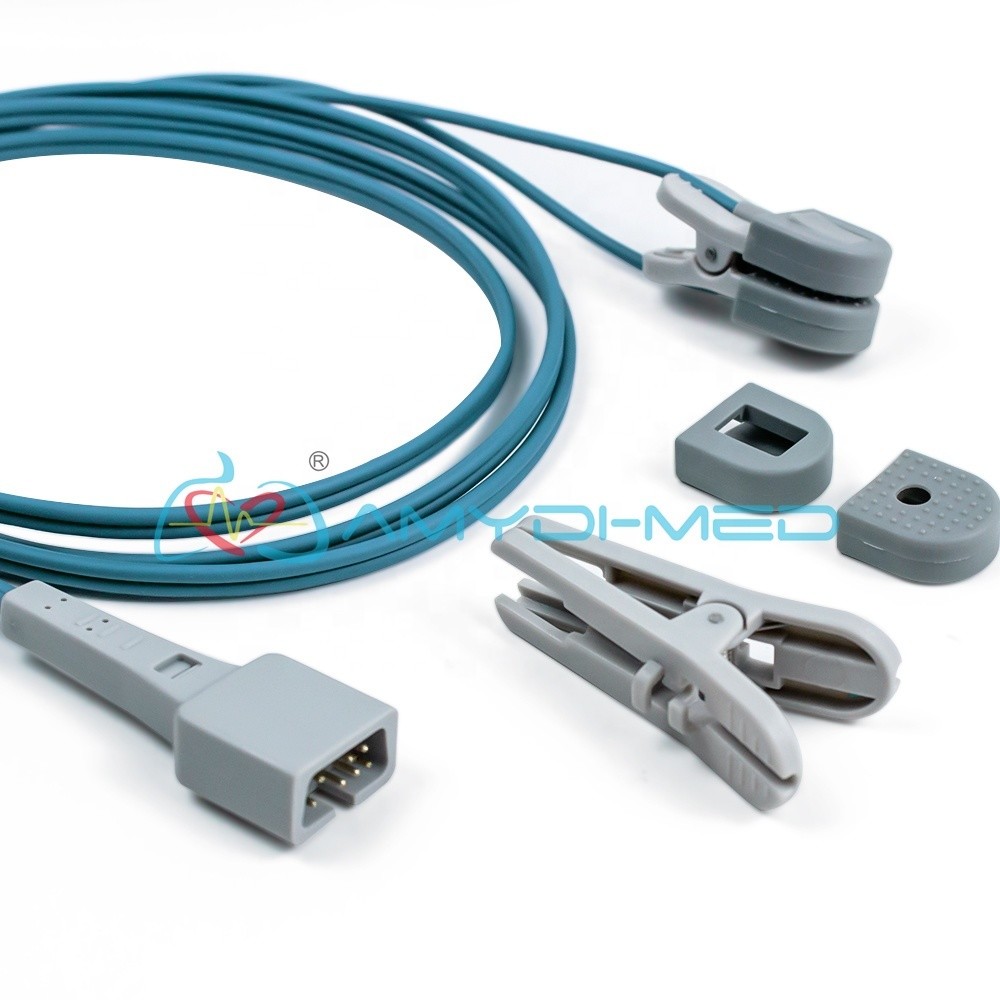

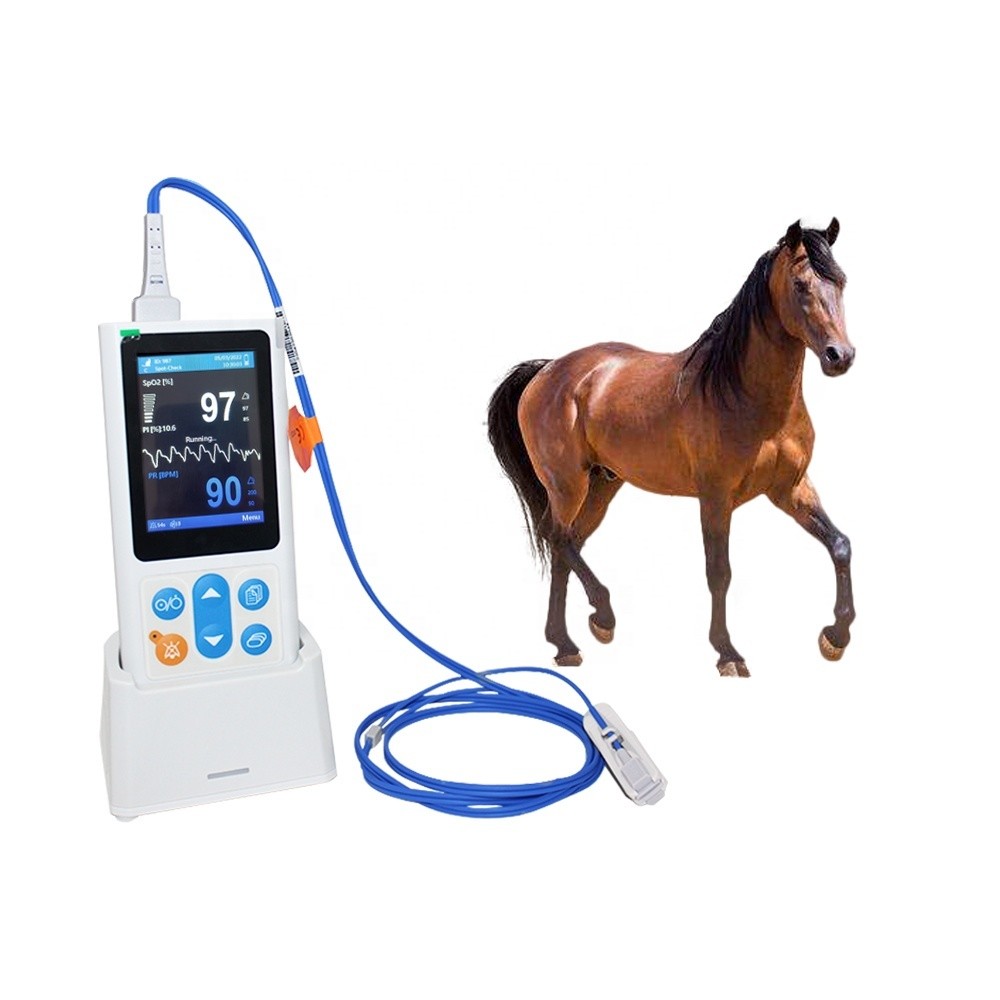

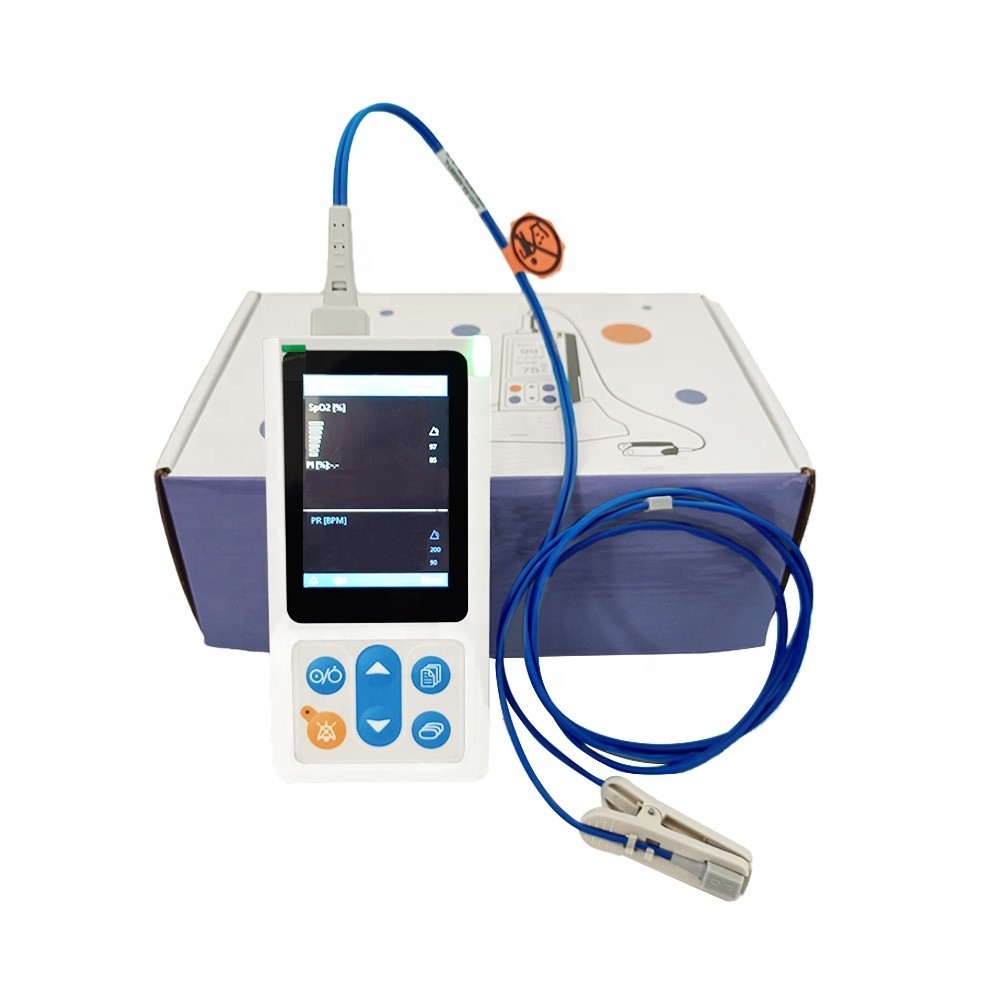

The oximeter works with given sensors providing SpO2 and pulse rate on a variety of veterinaries like horses, dogs and cats, etc with adjustable alarm limits as well as visible and audible alarm signals.
|
Veterinary Pulse Oximeter Features
|
|
|
|
1
|
3.5'Large size color touch screen(optional), 320X480pixels.
|
|
|
2
|
Turn off automatically for power saving.
|
|
|
3
|
Uses Lithium battery.
|
|
|
4
|
Three measurement modes: spot-check, monitoring and record.
|
|
|
5
|
Continuous storage of data for 999 patient data in 120 hours.
|
|
|
6
|
Data can be stored on a computer and managed, analyzed and printed by using the ODMS system.
|
|
|
7
|
Silent sleep monitoring, with data storage and automatic power-saving features for patients with 24 hours uninterrupted care.
|
|
|
8
|
Expanded heart rate values and veterinary specific SpO2 sensors to accommodate a variety of species.
|
|
|
Pulse Oximeter Specifications
|
|
|
|
|
||||
|
Enclosure
|
|
|
Electrical
|
|
||||
|
Weight
|
280g(0.617lb)with batteries
|
|
Battery
|
sound. |
||||
|
Dimensions
(W*H*D)
|
78.5 * 158* 31.5mm
3.09 * 6.22 * 1.24 inch |
|
|
|
||||
|
Display
|
|
|
|
|
||||
|
Screen Size
|
88.9mm(3.5'),
measured diagonally
|
|
|
|
||||
|
Screen type
|
TFT LCD, white LED backlight
|
|
Type
|
Lithium battery
|
||||
|
Resolution
|
320 * 480 pixels
|
|
Voltage
|
3.7V
|
||||
|
Alarms
|
|
|
Environmental
|
|
||||
|
Categories
|
Patient status and system status
|
|
Transport and Storage
|
Operating Conditions
|
||||
|
Priorities
|
Low, medium, and high
|
|
Temperature
(-20 ~ + 55 ) ℃ (-4 ~ + 131) F |
Temperature
(+ 5 ~ + 40)℃ (+ 41 ~ + 104)F |
||||
|
Notification
|
Audible and visual
|
|
Atmospheric Pressure
|
700hPa to 1060hPa
|
||||
|
Setting
|
Fulls torage, low battery and sensor off
|
|
Relative humidity
|
15% to 95%x non condensing
|
||||
|
Alarm volume level
|
45 to 85 decibels
|
|
Configuration
|
|
||||
|
Alarm system delay
|
<10seconds
|
|
|
|
||||
|
SpO2
|
|
|
|
|
||||
|
Measurement range
|
1% to 100%
|
|
|
|
||||
|
Accuracy
|
70-100% (+2%), <70% undefined
|
|
Optional Configuration
|
Data Analysis Software(ODMS), Touch Screen
|
||||
|
Resolution
|
1%
|
|
Trend
|
|
||||
|
Display wave speed
|
10.00 mm/sec
|
|
Tabular
|
|
||||
|
Pulse Rate
|
|
|
|
Saves a total of 120hours of data events; saves date and time, alarm conditions, measurements
|
||||
|
PP range
|
30bpm to 400bpm
|
|
|
|
||||
|
Accuracy
|
2bpm/t2% take maximum
|
|
|
|
||||
|
Resolution
|
1bpm
|
|
Tabularformat
|
One table for all parameters
|
||||
T/T, L/C, Western Union, PayPal, Money Gram, Trade Assurance order, Secure Payment and so on.
2. Where is your Loading Port?
Shenzhen China
3. What is your Samples time?
1 days for exsist samples, 3-7days for custom samples.
4. What is your Mass Production?
Normally 7-15days after received payment.
5. How fast will you quote to clients?
Quotation will be followed in 24hours once received your inquiry.
6. How long will you guarantee the mass quality?
3-12months
7.Would you accept custom logo printing or custom mould?
All is weclome, just contact us at once.
8.How about shipping way after making order?
Air, Sea and Express shipping are all acceptable.
9. How to control Quality of Mass?
QC workers check each step of production time by time.
Also customers' QC or 3rd party inspection is acceptable.
Guarantee: Quality of mass will be the same as the approval samples.
