Disposable Eeg Brain Wave Sensor Non Invasive Forehead Adhesive 4 Electrodes With BIS Monitoring

Disposable Eeg Brain Wave Sensor Non Invasive Forehead Adhesive 4 Electrodes With BIS Monitoring
Disposable Eeg Brain Wave Sensor Non Invasive Forehead Adhesive 4 Electrodes With BIS Monitoring Disposable Eeg Brain Wave Sensor Non Invasive Forehead Adhesive 4 Electrodes With BIS Monitoring Disposable Eeg Brain Wave Sensor Non Invasive Forehead Adhesive 4 Electrodes With BIS Monitoring Disposable Eeg Brain Wave Sensor Non Invasive Forehead Adhesive 4 Electrodes With BIS Monitoring Disposable Eeg Brain Wave Sensor Non Invasive Forehead Adhesive 4 Electrodes With BIS Monitoring Disposable Eeg Brain Wave Sensor Non Invasive Forehead Adhesive 4 Electrodes With BIS Monitoring
Basic Information
Place of Origin: Guangdong, China
Brand Name: Amydi-med
Model Number: AMD-DE-AF0010-1
Minimum Order Quantity: 100 pieces
Price: CN¥63.44/pieces 100-1999 pieces
Packaging Details: 1pc/Electrostatic bag, then into one big PE bag, finally into carton box.
Get Best Price
Chat Now
Detail Information
Disinfecting Type: Ultraviolet Light Properties: Medical Materials & Accessories
Size: 266mm Or 256mm, Length 266mm Stock: NO
Shelf Life: 1years Material: PET, PET
Quality Certification: TUV Instrument Classification: Class II
Safety Standard: GB9706.1-2007 Product Name: Disposable Non-invasive EEG Sensor
Brand: Customized Application: Clinic
Color: White+Blue Type: General Medical Supplies
Number Of Electrodes: 6 Electrodes Usage: Adult, Pediatric
OEM: Accept OEM
Highlight:

Disposable Eeg Brain Wave Sensor

,

Forehead Adhesive Eeg Brain Wave Sensor

,

4 Electrodes EEG Sensor

Product Description

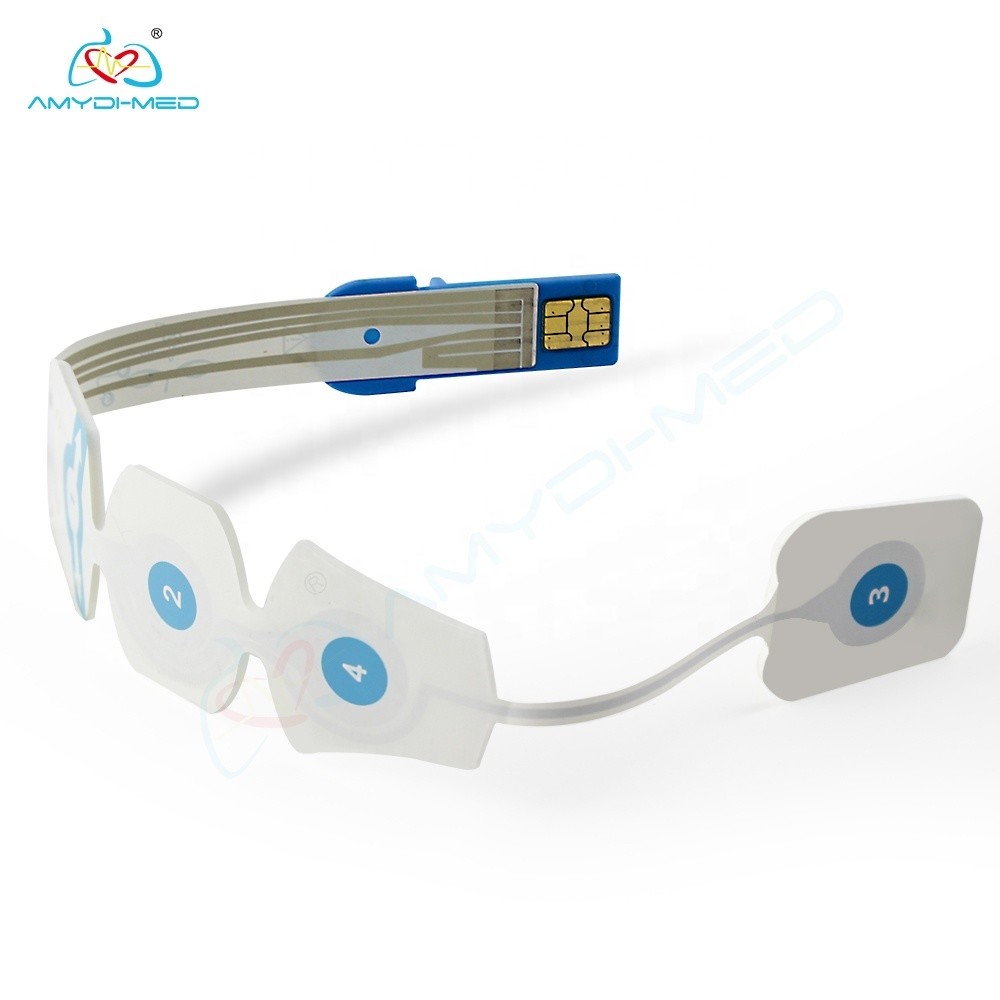

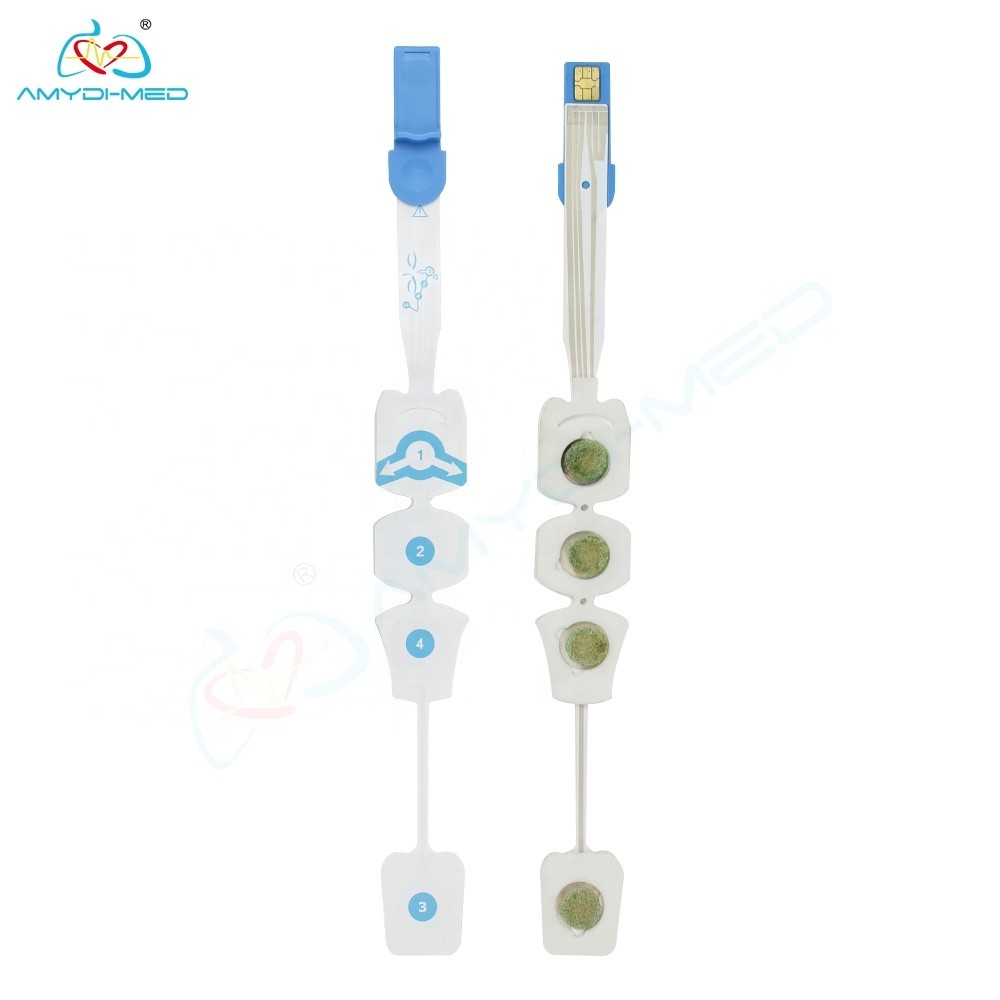

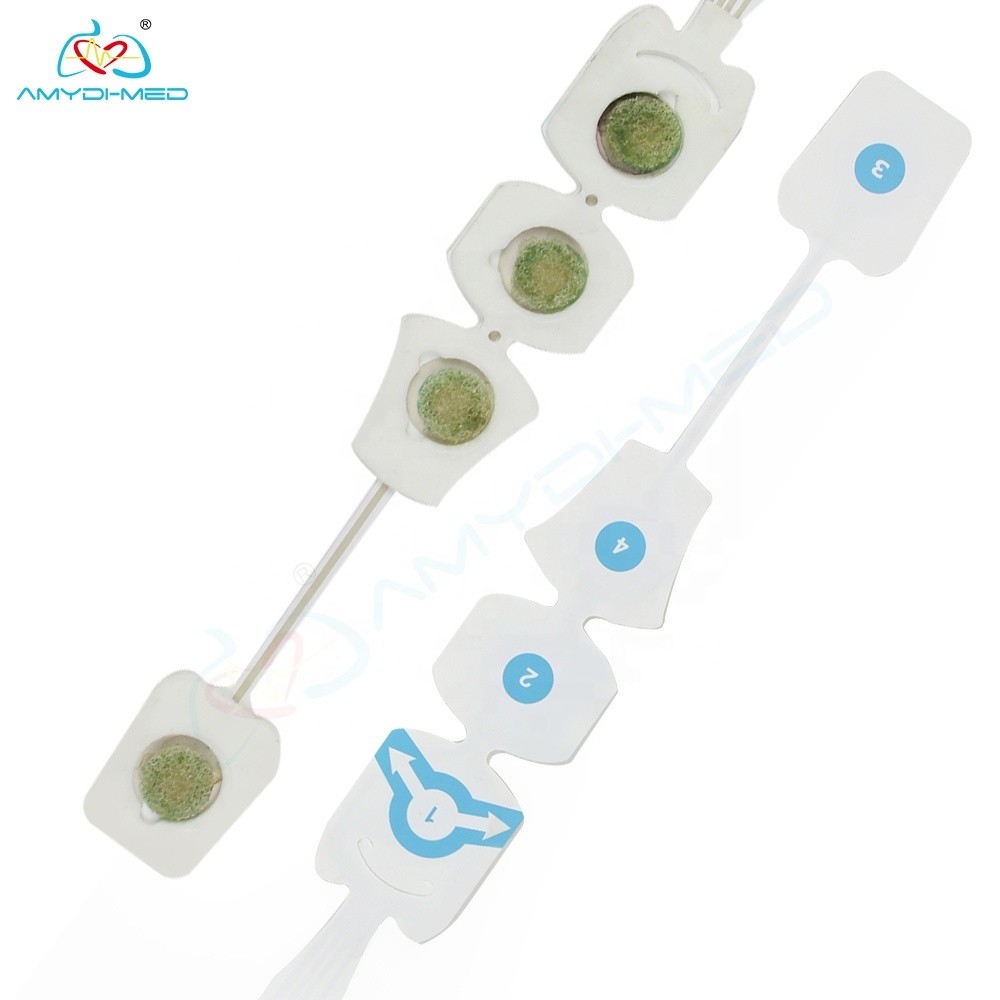

Disposable Non-Invasive Eeg Sensor For BIS Oximax Forehead Paste
With 4 Electrodes for Adult Pediatric




Disposable Eeg Brain Wave Sensor Non Invasive Forehead Adhesive 4 Electrodes With BIS Monitoring 0


Products Description

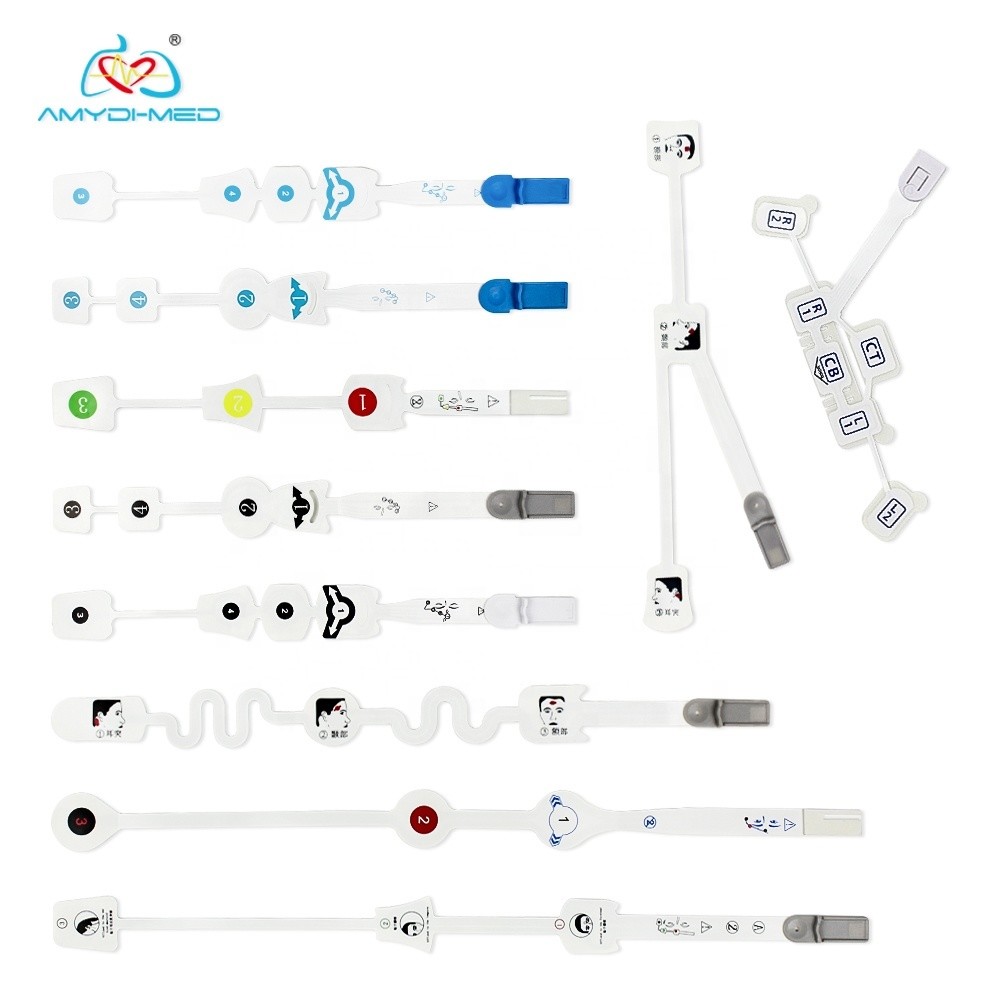

Amydi-med Customized For BIS (Oximax) EEG Sensor




No.
Compatible Brand
EEG Sensor Module
Product Name
Product Description
1
BIS (Oximax)
AMD-DE-AF0010-1
Adult EEG sensor
Tongue type, adult EEG sensor
2
BIS (Oximax)
AMD-DE-PF0010-1
Children's EEG Sensor
Tongue type, children's EEG sensor
3
BIS (Oximax)
AMD-DE-IF0010-1
Baby EEG sensor
Tongue type, baby EEG sensor
4
BIS (Oximax)
AMD-DE-NF0010-1
Neonatal EEG sensor
Tongue type, neonatal EEG sensor
Disposable Eeg Brain Wave Sensor Non Invasive Forehead Adhesive 4 Electrodes With BIS Monitoring 1
Disposable Non-invasive EEG sensor Clinical significance:

1
Precise anesthesia allows the patient to have no awareness during surgery
2
Improve the quality of recovery after surgery and shorten the recovery time
3
Make post-operative recovery more complete
4
Reduce the incidence of nausea and vomiting after surgery
5
Guide the ICU to calm the amount of medicinal and maintain a more stable level of sedation
6
For outpatient surgery anesthesia, can shorten the observation time after surgery
7
More accurate use of anesthetics to make anesthesia more stable, while reducing the amount of anesthesia.




BIS (Oximax) Disposable Non-invasive EEG Electrodes Operation Guide:

This product should be used according to the required models: compatible equipment,
the application part of the shock protection degree, at least F type application part.

1. Check whether the product is in good condition and can be used normally.
2. Clean and dry the skin on the site (shave first if there is more hair).

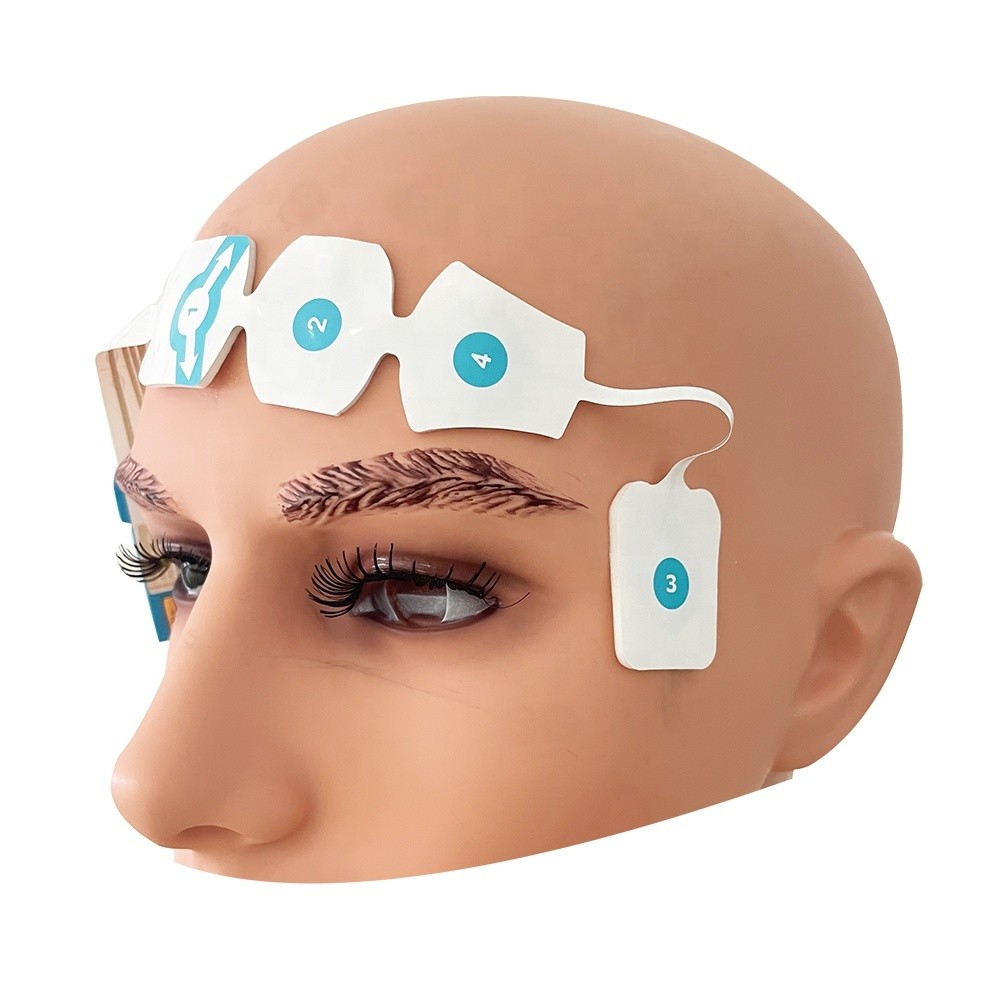

3. Adhere the product to the patient's head according to the instructions (Figure A, B.C, D).

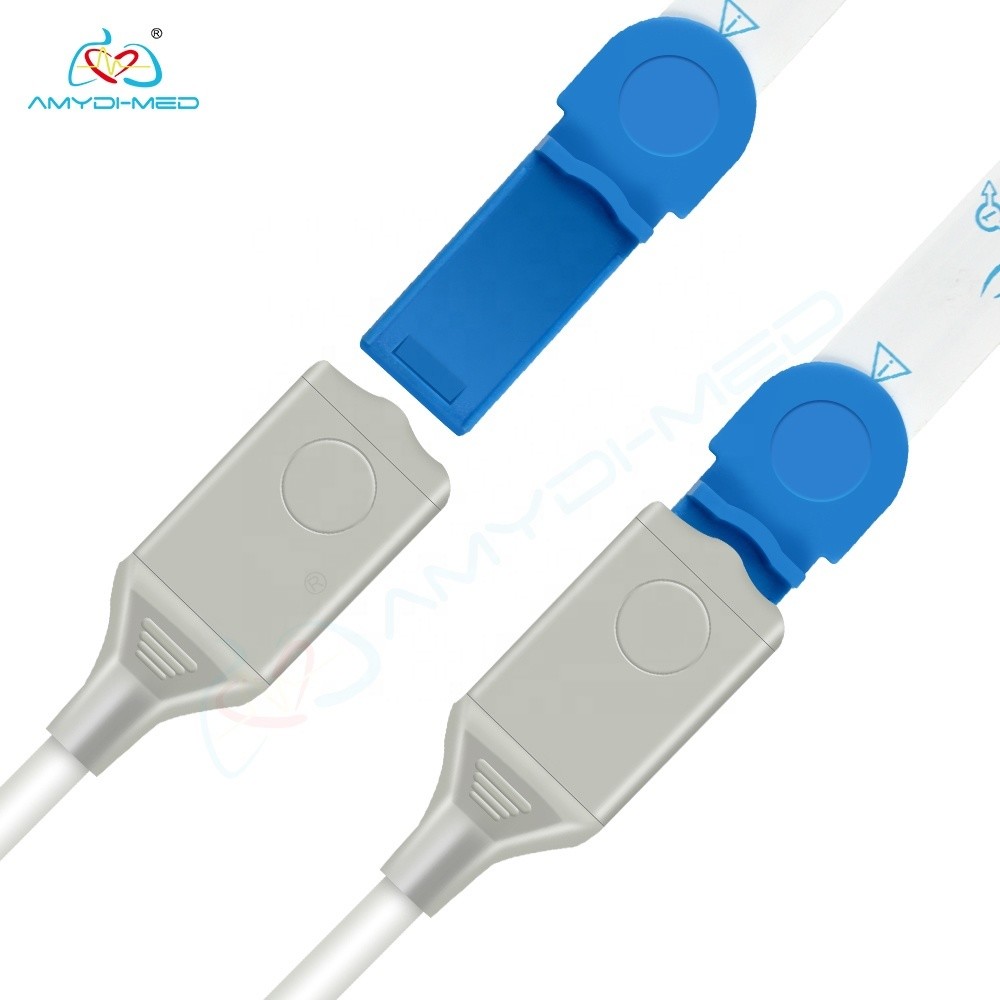

4. Connect the connecting part of the disposable non-invasive EEG electrode to the cable (Figure E).
Disposable Eeg Brain Wave Sensor Non Invasive Forehead Adhesive 4 Electrodes With BIS Monitoring 2
A.
① on the center of the forehead (about 5cm away from the bridge of the nose)
Disposable Eeg Brain Wave Sensor Non Invasive Forehead Adhesive 4 Electrodes With BIS Monitoring 3
B.
④ on the top of the eyebrows
Disposable Eeg Brain Wave Sensor Non Invasive Forehead Adhesive 4 Electrodes With BIS Monitoring 4
C.
③ on the temple (between the eye and hairline)
Disposable Eeg Brain Wave Sensor Non Invasive Forehead Adhesive 4 Electrodes With BIS Monitoring 5
D.
Tighten the edge of the 023@ electrode
Disposable Eeg Brain Wave Sensor Non Invasive Forehead Adhesive 4 Electrodes With BIS Monitoring 6
E.
Connection switch wiring
Use and storage conditions:




1
Lifetime
1 year from Production Date.


2
Number of users
Single use for single patient


Normal working conditions:




1
Ambient temperature
0℃ ~ 40℃


2
Humidity range
 <80%


3
Atmospheric pressure
86KPa ~ 106KPa


Storage and transportation conditions:




1
Ambient temperature
-5℃~40℃


2
Humidity range
<80%


3
Atmospheric pressure
45KPa ~ 1 10KPa


Disposable Eeg Brain Wave Sensor Non Invasive Forehead Adhesive 4 Electrodes With BIS Monitoring 7
Disposable Eeg Brain Wave Sensor Non Invasive Forehead Adhesive 4 Electrodes With BIS Monitoring 8
Disposable Eeg Brain Wave Sensor Non Invasive Forehead Adhesive 4 Electrodes With BIS Monitoring 9
Disposable Eeg Brain Wave Sensor Non Invasive Forehead Adhesive 4 Electrodes With BIS Monitoring 10
Disposable Eeg Brain Wave Sensor Non Invasive Forehead Adhesive 4 Electrodes With BIS Monitoring 11
Disposable Eeg Brain Wave Sensor Non Invasive Forehead Adhesive 4 Electrodes With BIS Monitoring 12
Disposable Eeg Brain Wave Sensor Non Invasive Forehead Adhesive 4 Electrodes With BIS Monitoring 13
