Product Details:
|
| Product Name: | Fingertip Pulse Oximeter | Type: | Blood Testing Equipment |
|---|---|---|---|
| Testing Data: | SpO2,Pulse Rate ,bar Graph , Pulse Waveform Display | Accuracy: | ±2% |
| Application: | Families,Clinic,Home Hospital | Display: | 0.96" Dual-color OLED Display |
| Screen: | Dual-color Display | Battery: | 1.5V (AAA Size) Alkaline Batteries*2 |
| Sample: | Available | After-sale Service: | Repair And Replacement |
| Warranty: | 12 Months | Packing: | 1 Pc / Box |
| High Light: | finger oxygen sensor,pulse oximeter blood oxygen monitor |
||
Specification:
| Product Name | OLED SpO2 Oxygen Pulse Oximetry Accurate Handheld Cheap Wifi Finger tip Pulse Oximeter |
| Dimensions | 58* 30* 30 MM (L*W*H) |
| Business type | Manufacturer |
| SpO2 Measuring Range | 0%~100% (the resolution is 1%) |
| Accuracy | ±2bpm or ±2% |
| PR Measuring Range | 30bpm~250bpm, (the resolution is 1bpm) |
| Resistance to surrounding light | The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1% |
| Display | OLED display |
| Power Consumption | less than 25mA |
| Voltage | DC 2.6V~3.6V |
| Power Supply | 1.5 V alkaline batteries (AAA)* 2 |
| Safety Type | Interior Battery,BF Type |
1.Major Features
1)SpO2 value display
2)Pulse rate value display, bar graph display
3)Pulse waveform display
4)The display mode can be changed
5)Screen brightness can be changed
6)Display format can be saved after power off
2.Main performance
1) Display Mode:0.96" Dual-color OLED display(blue and yellow)
2) Screen Resolution:128*64
3) SpO2 Measuring Range:0%~100%, (the resolution is 1%).
Accuracy:70%~100%:±2% ,Below 70% unspecified.
4) PR Measuring Range:30bpm~250bpm, (the resolution is 1bpm)
Accuracy:±2bpm or ±2% (select larger)
5) Measurement Performance in Weak Filling Condition:SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).
6) Resistance to surrounding light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%
7) Power Consumption:less than 30mA
8) Voltage: DC 2.6V - 3.6V
9) Power Supply:1.5V (AAA size) alkaline batteries × 2
10) Battery working hour: Two batteries can work continually for 20 hours,The theoretical number is 36 hours
11) Safety Type:Interior Battery,BF Type

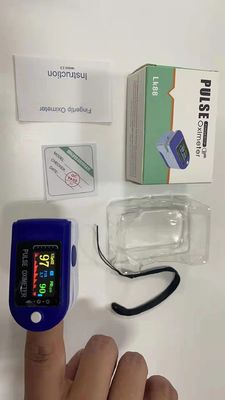

3.Accessories
1)a hanging rope
2)a user manual
4.Physical characteristic
Dimension:57(L) × 31(W) × 32(H) mm
Weight:About 50g (with the batteries)
